Bridge 500 & 600 Sliding Wardrobe System
Aluminium-framed sliding doors in glass, wood or glass-and-wood, with soft-close dampers, for door weights up to 60 kg. From System Holz, Italy.
A sliding door system for glass and wood wardrobe doors
Bridge 500 & 600 is a sliding door system for wardrobes. Bridge 500 forms aluminium-framed doors in glass, wood or glass-and-wood, and Bridge 600 carries wood panels with or without an aluminium handle profile. Doors run on an upper and lower rail, carry up to 60 kg, and can close softly on a damper or stop on a traditional stopper.
- One rail system, two door styles. Bridge 500 and 600 share rails, dampers and stoppers, so one wardrobe design can use either.
- Four handle profiles plus a corner version on Bridge 500, for different door looks and for corner wardrobes.

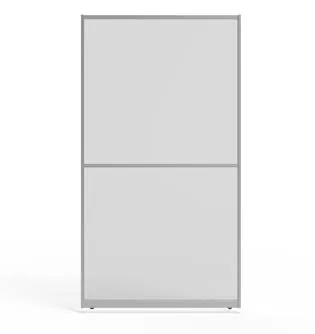

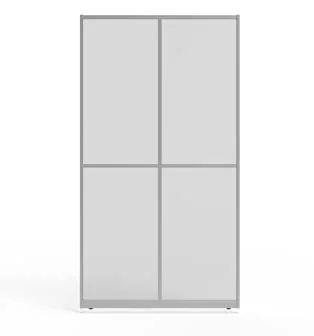

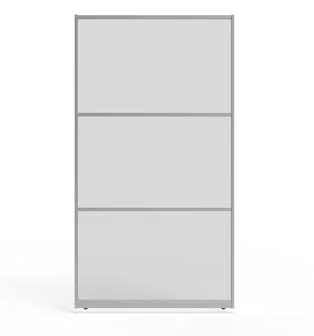

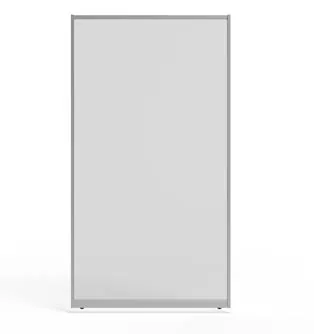

- Flexible door layouts. Single, two, three and four-panel door configurations in the manufacturer's catalogue.
- Soft-close or stopper braking, with a 60 kg damper kit and a traditional stopper.
- Door profiles also work with the B800 suspended sliding system, per the manufacturer.
Bridge 500 or Bridge 600?
Aluminium-framed glass, wood or glass-and-wood doors
Four vertical aluminium handle profiles, a corner door version, crosspieces for multi-panel doors and gaskets for 4, 6, 8 and 10 mm panels. The most customisable of the two.
Wood-panel doors, with or without an aluminium handle
Uses the aluminium handle profile 010827 for 18 or 19 mm panels, or no handle profile for panels up to 22 mm, with lower rollers either built into the panel or fixed on its surface.
| Bridge 500 | Bridge 600 | |
|---|---|---|
| Door construction | Aluminium frame with vertical handle profile, crosspieces and gaskets | Wood panel; with aluminium handle profile or without |
| Door materials | Glass, wood, glass-and-wood | Wood panels |
| Panel thickness | Glass 4, 6 or 8 mm; wood 8 or 10 mm | 18 or 19 mm with handle profile; up to 22 mm without |
| Handle profiles | 010662, 010702, 010884, 011227 and corner profile 011207 | 010827 with counter-handle 010828; divider profile 010847 |
| Lower rollers | Roller kit 000K243 or 000K265, depending on the handle profile | Kit 000K163, built-in (57 x 46 mm milling) or fixed on the panel |
| Max door weight | 60 kg | 60 kg (damper kit rated 60 kg) |
| Height adjustment | ±3 mm | Up to 6 mm at the lower roller |
| Braking | Damper kit 000K342 or stopper 000T221 | Damper kit 000K342 or stopper 000T221 |
| Corner doors | Yes, corner profile 011207 | Not covered in the catalogue |
Source: Gruppo Pozzi Bridge 500 catalogue 2025 (V19), Bridge 500 assembly instructions and Bridge 600 catalogue. Confirm the version and availability for your project on enquiry.
Handle profiles, panels and corner doors
Bridge 500 doors are built from aluminium vertical handle profiles, upper, intermediate and lower crosspieces, and the panel itself. The profile that you choose sets the look of the door edge and decides which roller kit and brush go with it.
| Profile code | Type | Matching parts |
|---|---|---|
| 010662 | Vertical aluminium handle profile | Ledge gasket 020086 · brush 1349/1.69.47 · roller kit 000K243 · brake pin 01CT220 |
| 010702 | Vertical aluminium handle profile | Ledge gasket 020086 · brush 1349/1.49.47 · roller kit 000K265 · brake pin 01CT228 |
| 010884 | Vertical aluminium handle profile | Ledge gasket 020086 · brush 1349/1.69.47 · roller kit 000K243 · brake pin 01CT220 |
| 011227 | Vertical aluminium handle profile, marked NEW in the catalogue | Roller kit 000K243 · brake pin 01CT220 |
| 011207 | Corner profile for corner doors | 45 degree nylon corner cover strip 02NV482 |
The catalogue lists the ledge gasket 020086 for profiles 010662, 010884 and 010702. Mirano confirms the exact kit for your chosen profile when you enquire.
Glass, wood and glass-and-wood panels
The same frame works with glass, wood and glass-and-wood panels. A gasket sits between the panel and the aluminium profile, and its code depends on panel type and thickness.
| Panel | Thickness | Gasket |
|---|---|---|
| Glass | 4 or 6 mm | 020087, transparent gasket |
| Wood | 8 mm | 020089, gasket for 8 mm wood panel |
| Glass or wood | 8 mm | 020117, gasket for 8 mm wood and glass panel |
| Wood | 10 mm | No gasket needed |
Source: Bridge 500 assembly instructions, gasket page.
Crosspieces 010661 (upper and intermediate) and 010660 (lower) frame each panel. An assembly kit 000K248 with screw 01MG174 joins the central crosspiece.

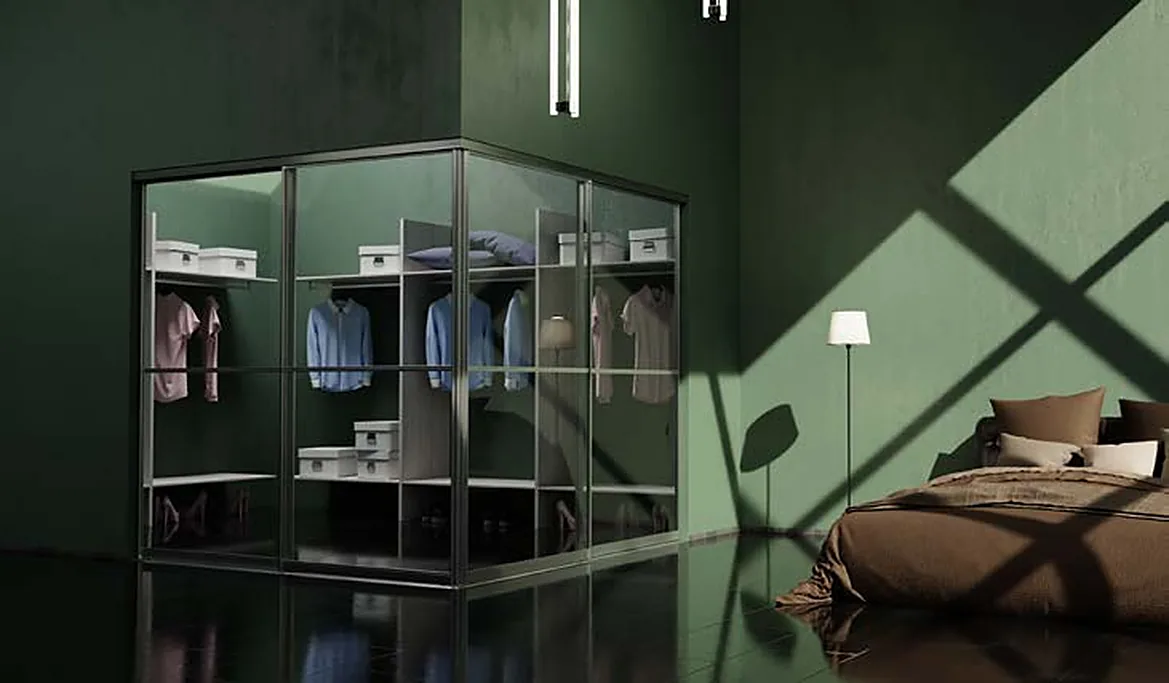

Doors that turn the corner
Bridge 500 includes a corner door version. Two doors meet at a 45 degree corner using the corner profile 011207 and the nylon corner cover strip 02NV482, which makes glass-enclosed corner wardrobes and dressing rooms possible.
- Corner profile 011207
- 45 degree nylon corner cover strip 02NV482
- Same rails, rollers and braking as the straight doors

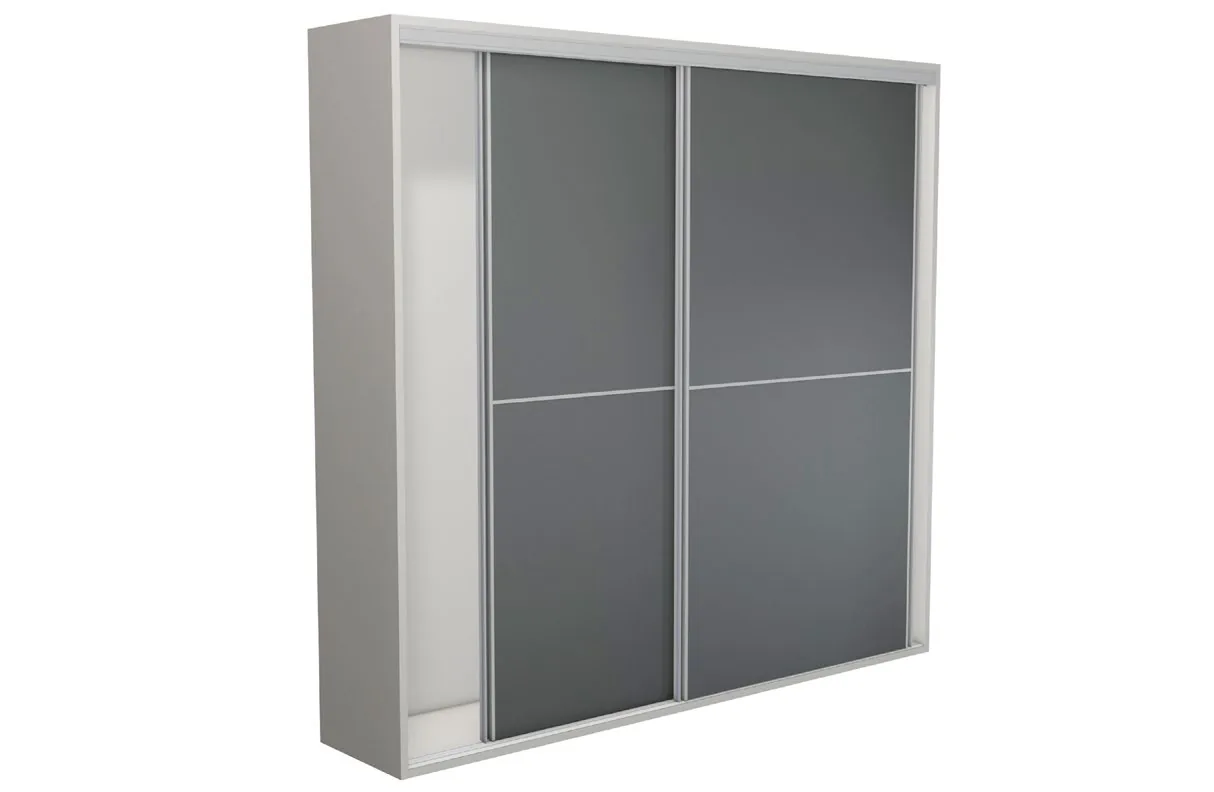

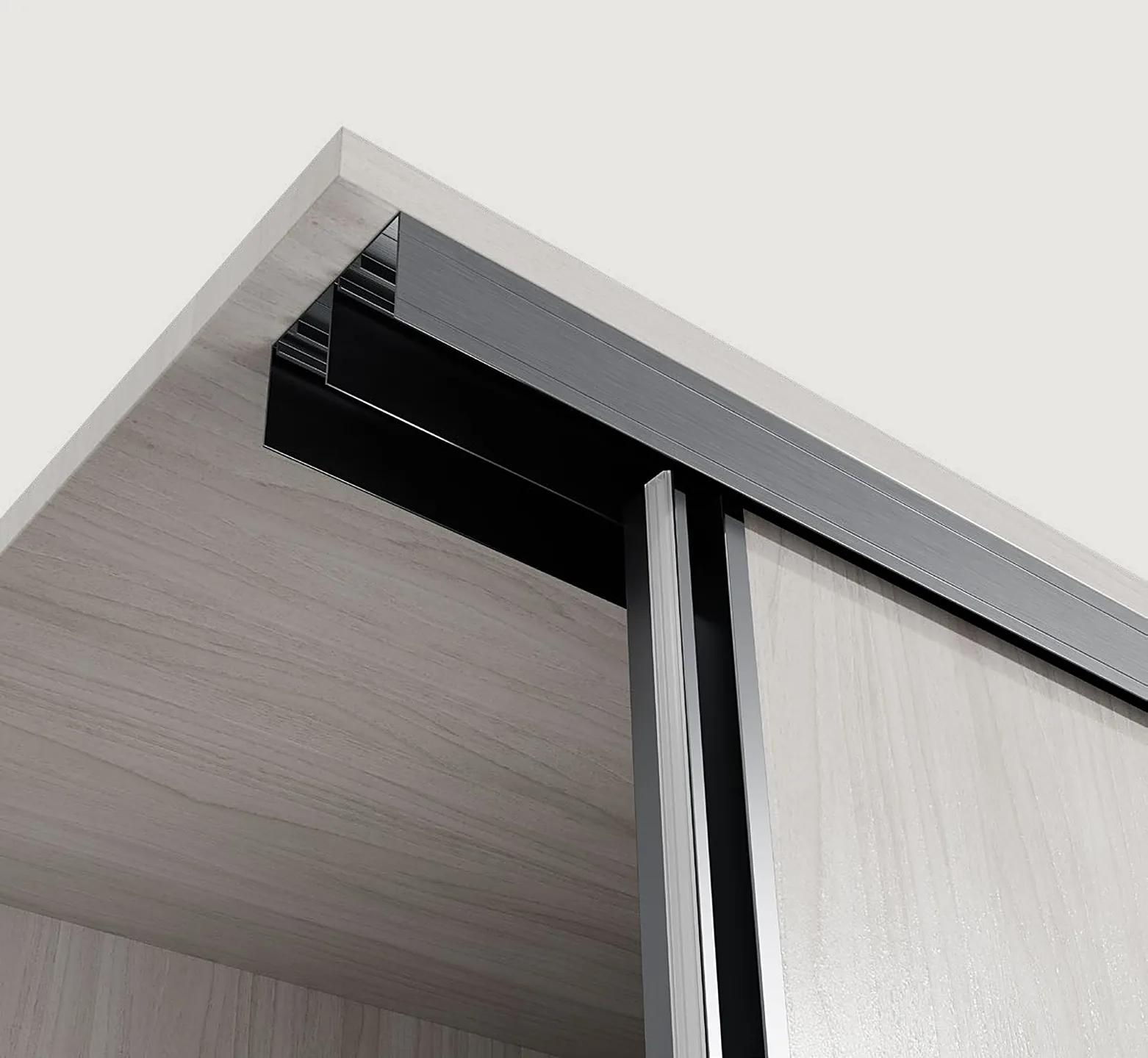

Wood-panel doors with or without a handle profile

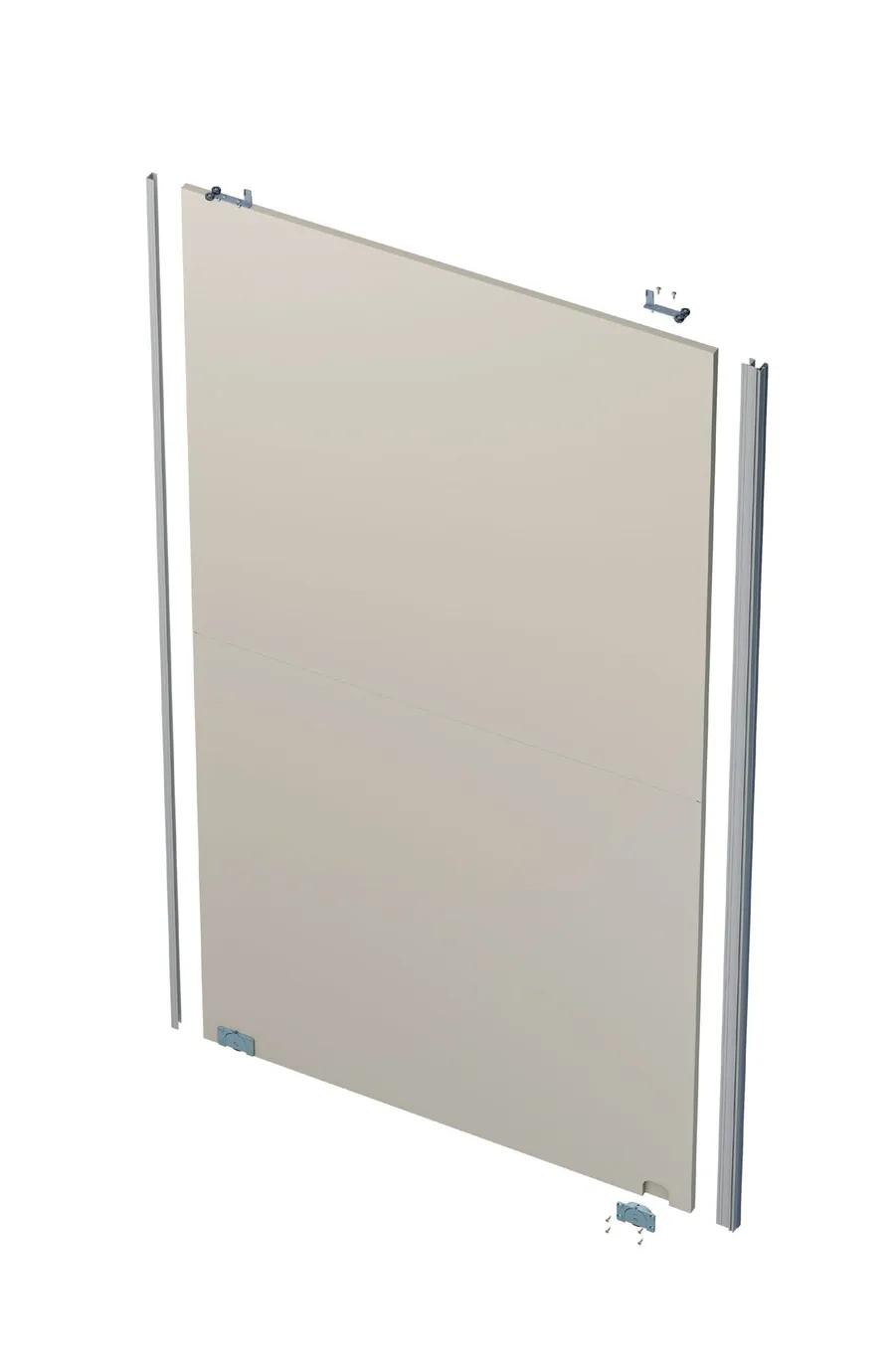

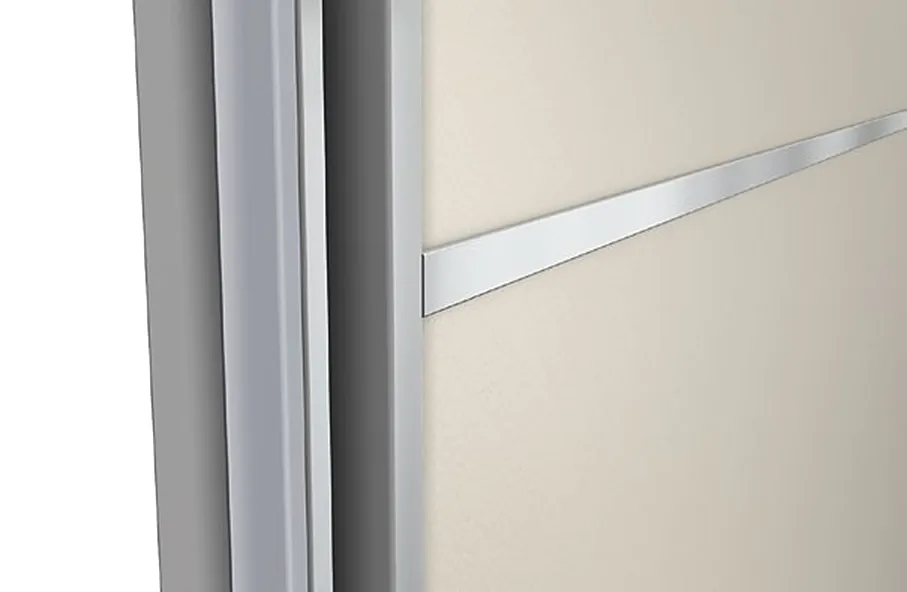

Bridge 600 is the wood-panel version of the system. With the aluminium handle profile 010827 and counter-handle profile 010828, it takes wooden panels of 18 mm or 19 mm. Without a handle profile the maximum panel thickness is 22 mm.
- Standard finish: natural anodised (arc10). Alternative finishes can be made on request.
- Divider profile 010847 for two-panel doors, assembled so that either 11 mm or 1 mm is visible, which gives two design options.
- Same rails and braking as Bridge 500, including the 60 kg damper kit and traditional stopper.
Rollers for wood-panel doors

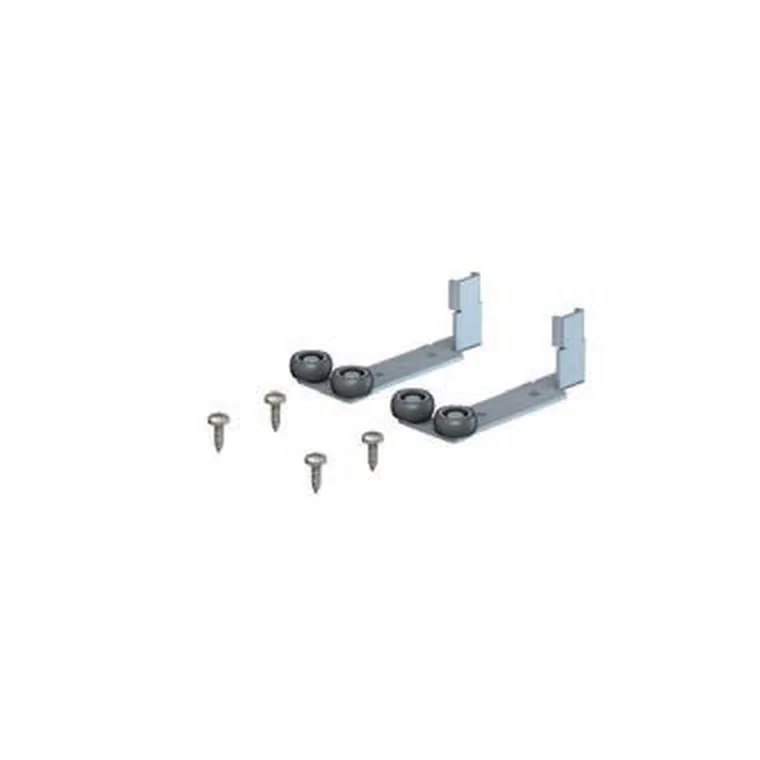

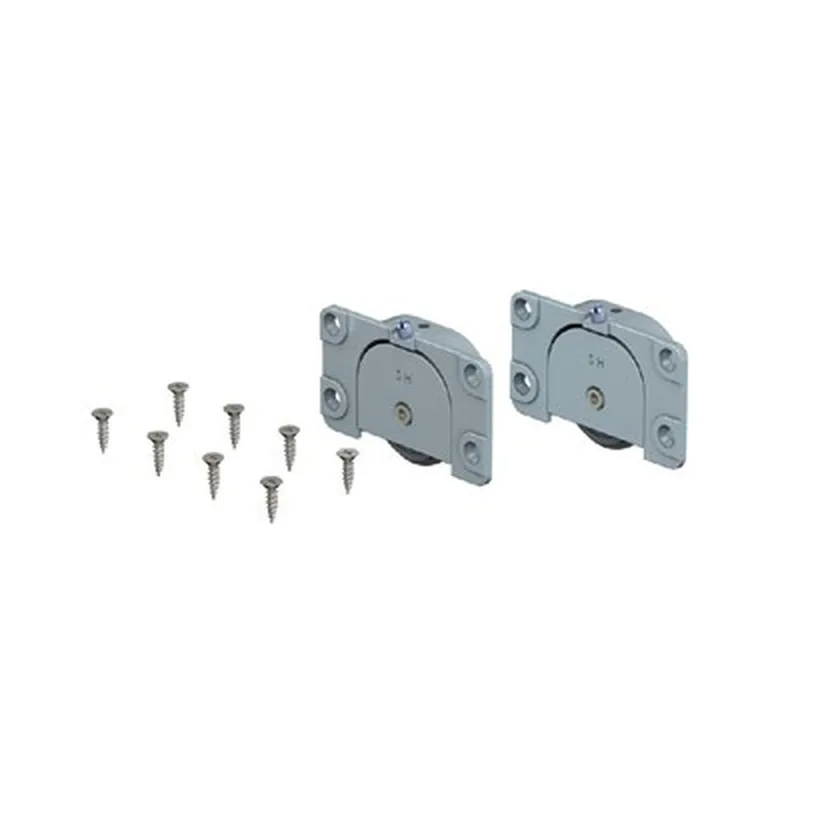

Bridge 600 doors hang from the upper guides kit 000K164 and run on the lower roller kit 000K163. The lower rollers can be built into the panel or fixed on its surface, depending on the panel thickness and design.
| Option | How it is fitted | Notes |
|---|---|---|

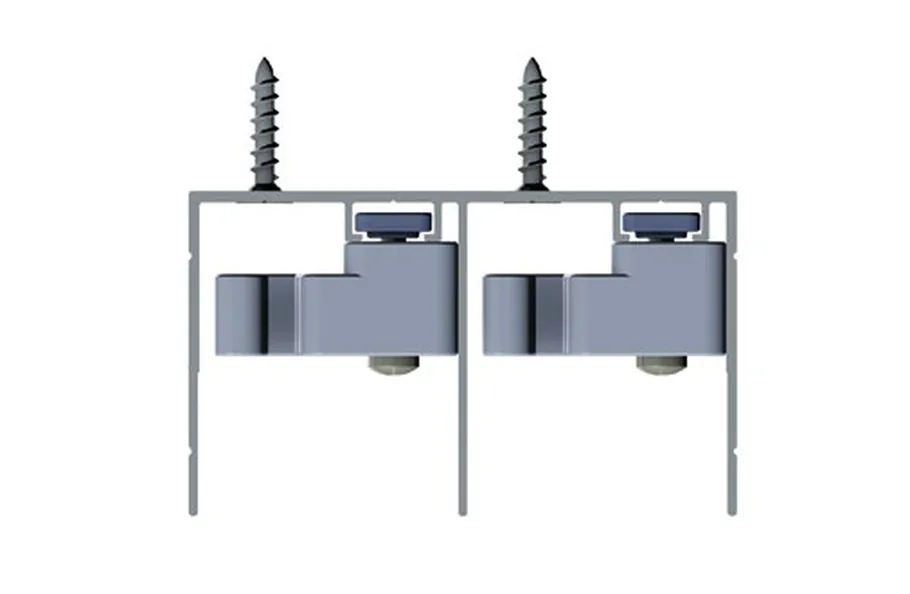

| Built-in lower rollers | 57 x 46 mm milling cut in the wood panel for kit 000K163 | Panels up to 22 mm. Upper guides at least 170 mm from the door edge |

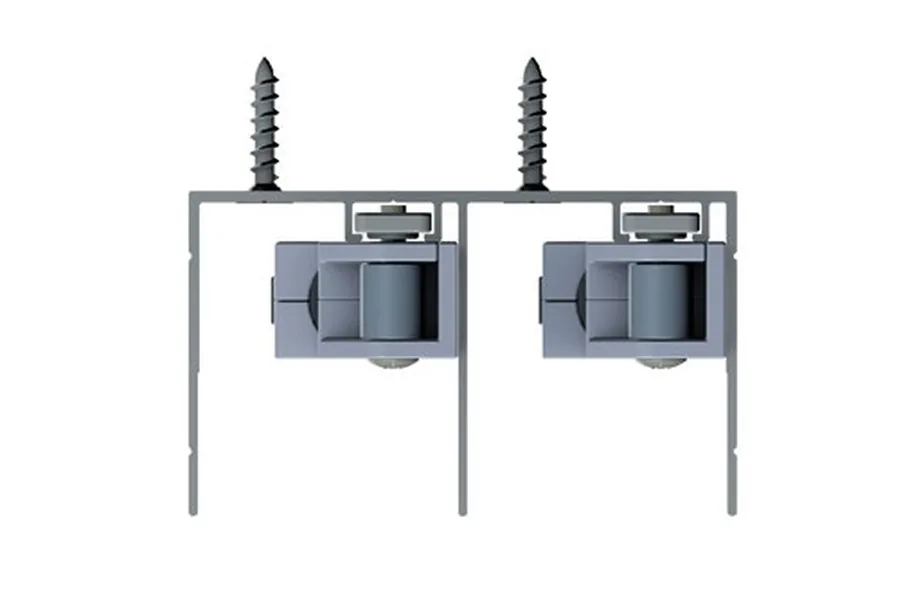

| Lower rollers fixed on the panel | Fixed with wood screws TPS 4 x 12 mm | Remove the adjustment grain and refit it in the upper hole of the roller. Upper guides at least 170 mm from the door edge |
Source: Bridge 600 catalogue, door assembling pages.

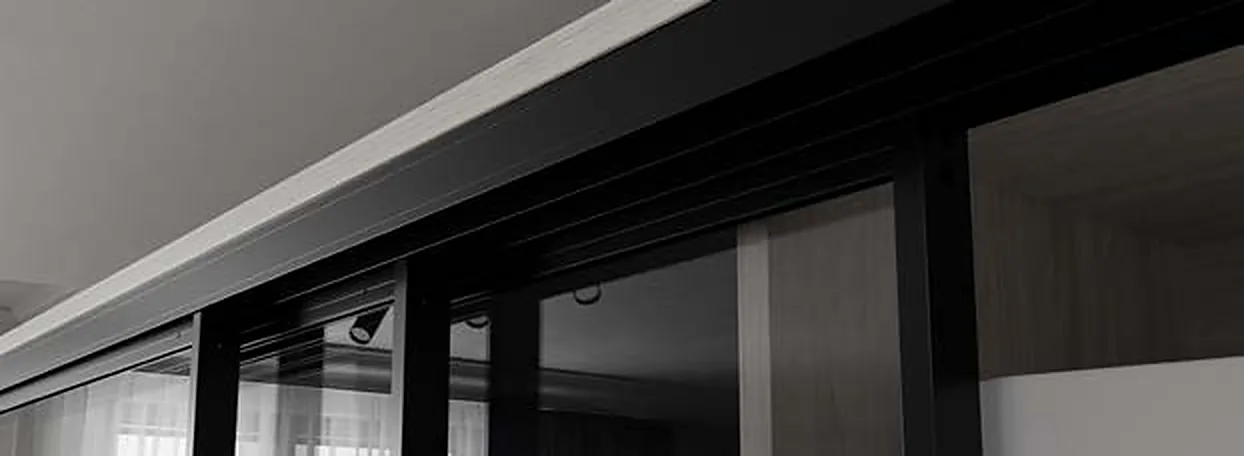

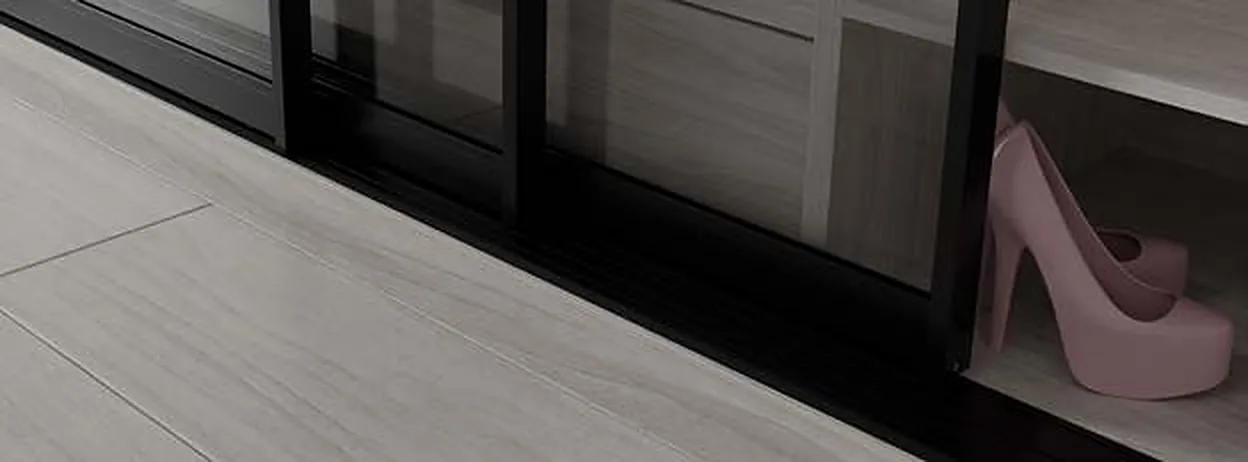

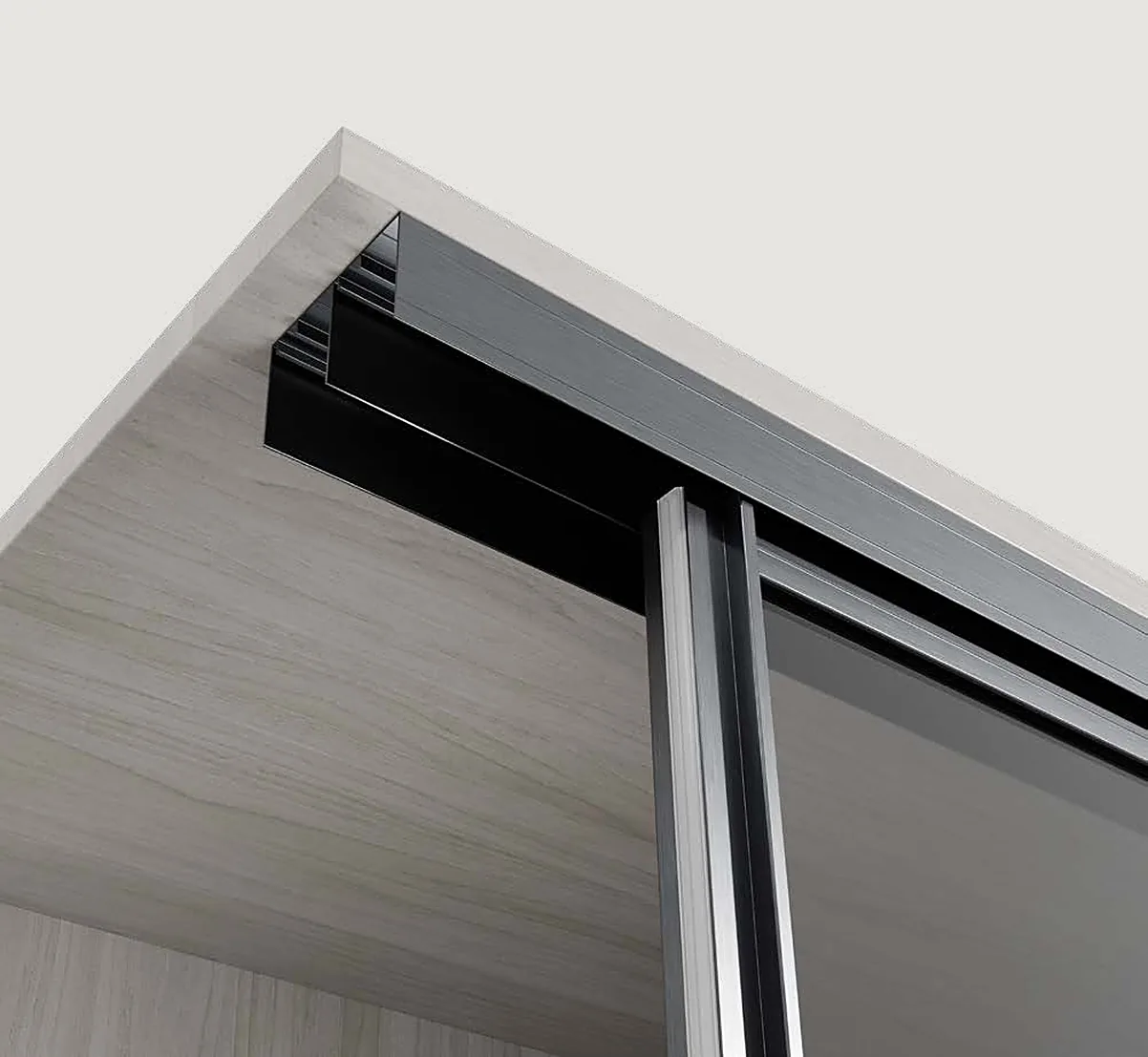

Upper and lower rails
Both systems run in aluminium rails. Choose a 1-way rail for a single door track or a 2-way rail where doors pass each other. The built-in lower rail sits flush in the floor of the carcass.
| Rail | Code | Use |
|---|---|---|
| Upper rail, 1-way | 011007 | Single door track |
| Upper rail, 2-way | 011001 | Two door tracks |
| Lower rail, 2-way | 010659 | Two door tracks |
| Lower rail, 1-way | 010812 | Single door track |
| Lower rail, 1-way built-in | 010879 | Recessed into the base panel |
A lower rail spring, code 01MD031, is listed in the Bridge 500 parts list.

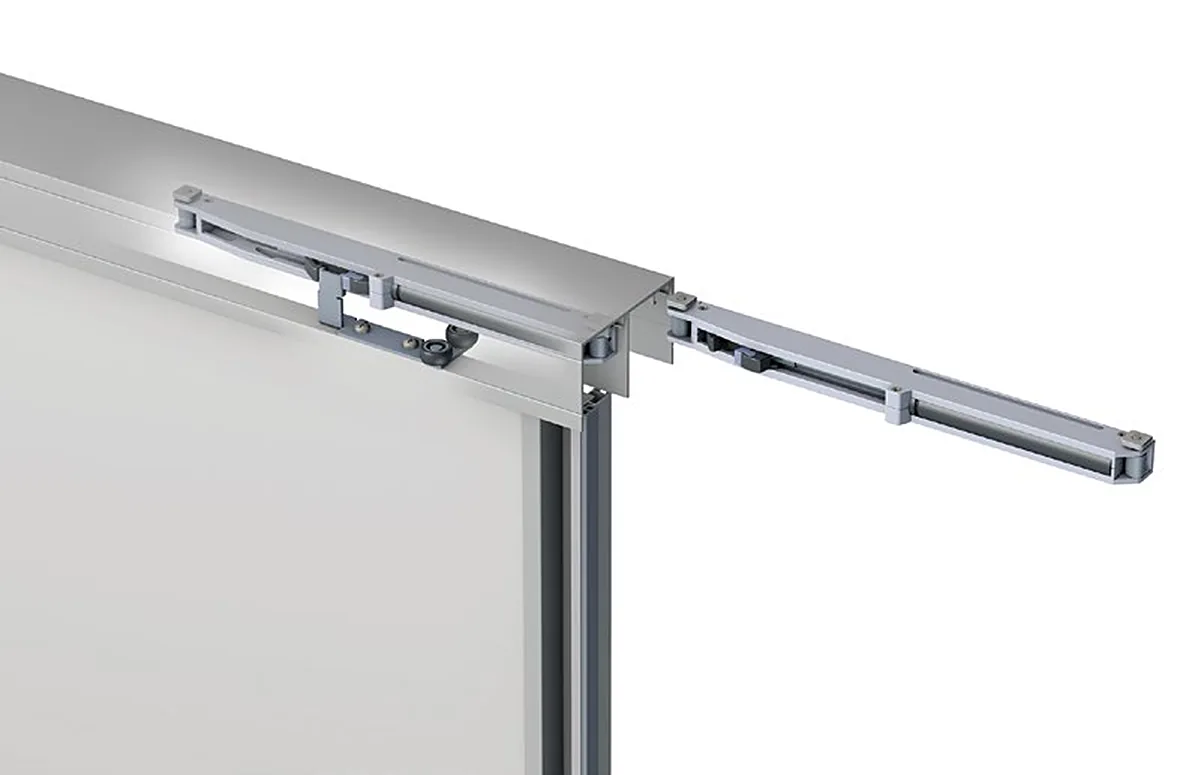

Soft-close dampers or traditional stoppers
Choose how the doors stop. Both options fit Bridge 500 and Bridge 600.
| Option | Code | What it does |
|---|---|---|

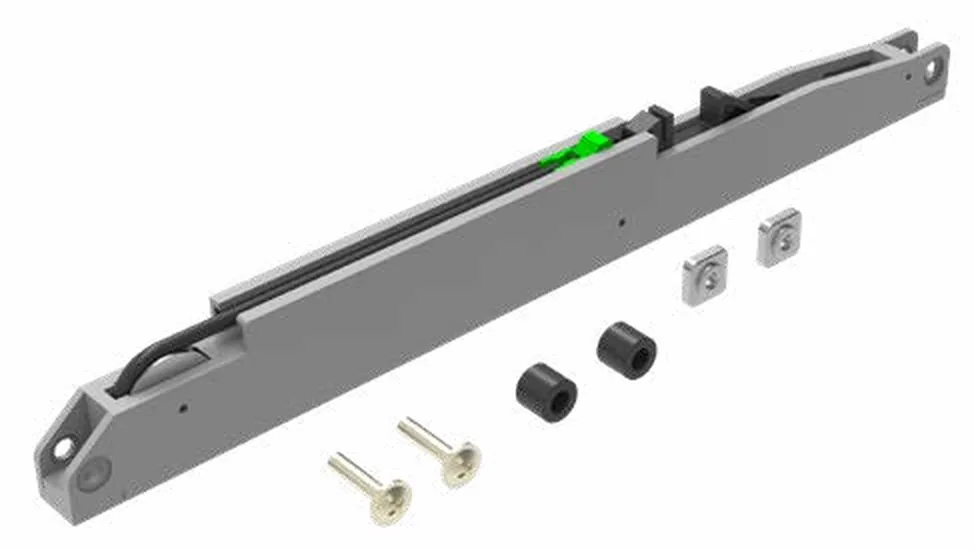

| Soft-close damper kit | 000K342 | 50 mm stroke, 60 kg capacity. The damper must be armed before it is inserted in the upper rail |
| Traditional stopper | 000T221 | A fixed stop for Bridge 500 and 600 |
| Anti-derailment kit | 000K389 | Listed in the Bridge 500 parts list |
Mirano confirms the damper and stopper positions for 1-way and 2-way rails with your order.

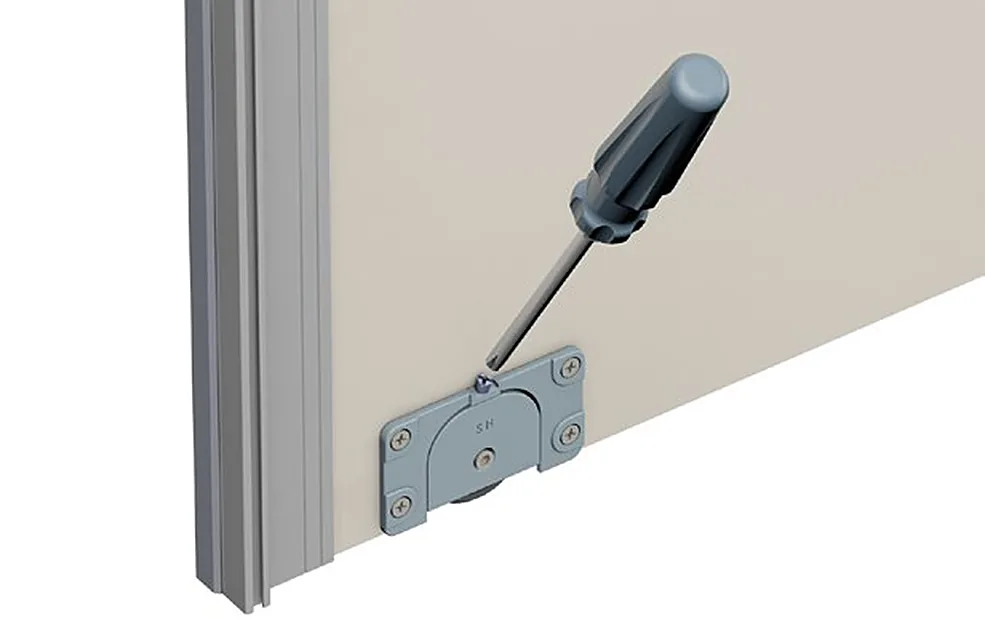

Height adjustment at the lower roller
Doors are levelled after hanging by adjusting the lower roller. Bridge 500 allows ±3 mm of height adjustment, and the Bridge 600 lower roller allows a maximum of 6 mm. Both built-in and surface-fixed rollers can be adjusted with a screwdriver.
Adjustment is part of the fitter's routine, so factor in door clearance when you cut panels.
How to calculate Bridge 600 door sizes
The manufacturer gives these formulas for Bridge 600 doors. B is the opening width, HV the opening height, A the door width and HA the door height. All sizes are in millimetres.
| What | Formula |
|---|---|
| Door height HA | HV − 55 |
| Door width A, 2 doors | (B + 37) / 2 |
| Door width A, 3 doors | (B + 74) / 3 |
| Door width A, 4 doors | (B + 111) / 4 |
| Panel width X, 18 mm wood panel | A − 55 |
| Panel width X, 19 mm wood panel | A − 67 |
| Panel height Y, door split in 2 | (HA − 1.5) / 2 |
| Panel height Y, door split in 3 | (HA − 3) / 3 |
Formulas come from the Bridge 600 catalogue. Check them against the latest drawings with Mirano before you cut panels.
Worked example: for an opening of 2400 mm wide and 2400 mm high with two doors, door height HA is 2345 mm and each door width A is 1218.5 mm.
Components and part codes
Part codes make it easy to specify and re-order. Descriptions follow the manufacturer's parts lists.
| Code | Part | System |
|---|---|---|
| 011001 / 011007 | Upper rail, 2-way / 1-way | 500 & 600 |
| 010659 / 010812 / 010879 | Lower rail, 2-way / 1-way / built-in | 500 & 600 |
| 010662 / 010702 / 010884 / 011227 | Vertical aluminium handle profiles | 500 |
| 011207 + 02NV482 | Corner profile + 45 degree nylon cover strip | 500 |
| 010660 / 010661 | Lower / upper and intermediate crosspiece | 500 |
| 000K248 + 01MG174 | Central crosspiece assembly kit and screw | 500 |
| 020086 | Ledge gasket (grey on Bridge 600) | 500 & 600 |
| 020087 / 020089 / 020117 | Panel gaskets: 4/6 mm glass, 8 mm wood, 8 mm wood and glass | 500 |
| 1349/1.69.47 / 1349/1.49.47 | Brushes for handle profiles | 500 & 600 |
| 000K243 / 000K265 | Roller kits for the Bridge 500 handle profiles | 500 |
| 01CT220 / 01CT228 | Pins to activate brakes in the handle profiles | 500 |
| 01MD031 | Lower rail spring | 500 |
| 010827 / 010828 | Vertical handle profile / counter-handle profile | 600 |
| 010847 | Divider profile | 600 |
| 000K163 / 000K164 | Lower roller kit / upper guides kit | 600 |
| 000K342 | Damper kit, 50 mm stroke, 60 kg | 500 & 600 |
| 000T221 | Traditional stopper | 500 & 600 |
| 000K389 | Anti-derailment kit | 500 |
Prices and pack sizes are quoted on enquiry.
Bridge 500 & 600 at a glance
Everything the catalogue states, in one place. Items marked confirm are not specified in the manufacturer's documents and are confirmed by Mirano on enquiry.
| Specification | Bridge 500 & 600 |
|---|---|
| System type | Sliding door system for wardrobes, with upper and lower rails |
| Manufacturer | Gruppo Pozzi (System Holz), Brenna, Italy |
| Maximum door weight | 60 kg |
| Door materials | Glass, wood, glass-and-wood (Bridge 500); wood (Bridge 600) |
| Glass thickness | 4, 6 or 8 mm (Bridge 500) |
| Wood panel thickness | 8 or 10 mm (Bridge 500); 18 or 19 mm with handle profile, up to 22 mm without (Bridge 600) |
| Handle profiles | 010662, 010702, 010884, 011227, corner 011207 (500); 010827 and 010828 (600) |
| Door layouts | Single, two, three and four-panel doors; corner doors (Bridge 500) |
| Braking | Damper kit 000K342 (50 mm stroke, 60 kg) or stopper 000T221 |
| Height adjustment | ±3 mm (Bridge 500); up to 6 mm (Bridge 600) |
| Profile finish | Bridge 600: natural anodised standard, others on request. Bridge 500: confirm |
| Maximum door height and width | Confirm |
| Cycle rating, certification and warranty | Confirm |
| Price | On enquiry |
Bridge in use
Images are manufacturer renders and catalogue photographs of Bridge 500 and 600.
Catalogues and fitting instructions
Catalogues and instructions from the manufacturer, for specifiers and fabricators.
Bridge 500 & 600: frequently asked questions
What is the Bridge 500 & 600 sliding system?
Bridge is a sliding door system for wardrobes from System Holz (Gruppo Pozzi, Italy). Bridge 500 builds aluminium-framed doors in glass, wood or glass-and-wood combinations using a choice of vertical handle profiles. Bridge 600 is the wood-panel version, available with an aluminium handle profile or without one. Both carry doors up to 60 kg and share the same rails, dampers and stoppers.
What is the maximum door weight?
The manufacturer states a maximum door weight of 60 kg for Bridge 500, and the soft-close damper kit is rated for a 60 kg door. Bridge 600 uses the same 60 kg damper kit and the same stopper. Check the weight of your finished door, including glass, against this limit.
What is the difference between Bridge 500 and Bridge 600?
Bridge 500 is an aluminium-frame system for glass, wood or glass-and-wood doors, with four vertical handle profiles and a corner version. Bridge 600 is for wood panels only: with the aluminium handle profile 010827 it takes 18 mm or 19 mm panels, and without a handle profile it takes panels up to 22 mm using built-in or surface-fixed lower rollers.
Can Bridge doors be soft closing?
Yes. Both systems accept a soft-close damper kit (code 000K342, 50 mm stroke, 60 kg capacity) or a traditional stopper (code 000T221). The damper must be armed before it is inserted into the upper rail.
Which glass and wood panel thicknesses can Bridge 500 take?
Per the gasket table in the manufacturer's instructions, Bridge 500 takes 4 mm or 6 mm glass with gasket 020087, 8 mm wood panels with gasket 020089, 8 mm glass or wood with gasket 020117, and 10 mm wood without a gasket.
Can I build a corner wardrobe with Bridge 500?
Yes. Bridge 500 includes a corner door version using corner profile 011207 and a 45 degree nylon corner cover strip, code 02NV482.
How do I calculate door sizes for Bridge 600?
The manufacturer gives formulas. Door height HA equals opening height minus 55 mm. For two doors, door width A equals (opening width + 37) divided by 2; for three doors (opening width + 74) divided by 3; for four doors (opening width + 111) divided by 4. Panel formulas for 18 mm and 19 mm panels are on this page. Always confirm with Mirano before cutting.
What finish do the aluminium profiles come in?
For Bridge 600 the standard profile finish is natural anodised, with alternative finishes possible on request. Finish options for Bridge 500 profiles are not listed in the catalogue, so confirm the finish for your project on enquiry.
Does Mirano supply Bridge 500 & 600 across India?
Mirano by Varun Impex supplies sliding wardrobe hardware to wardrobe manufacturers, OEMs, interior designers, architects and dealers across India. Request a quote with your opening sizes and panel material and we confirm the part list and availability.
Planning a sliding wardrobe project?
Send us the opening size, the number of doors and the panel material. Our team confirms the right system, the part list and a project quote, and replies within one business day.
