01
Single drawer or door base unit
A J-profile along the top edge is enough. The opening line stays continuous with the neighbouring units.
Kitchen Fittings / Plinth & Gola / Horizontal
Horizontal Gola Profile — C & J Types for Handleless Kitchens
Aluminium gola channels that replace handles on base cabinets and drawer stacks — for modular kitchen OEMs, architects and interior designers across India. Includes the 2AL to 5AL gola profiles in ten finishes.
A horizontal gola profile is an aluminium channel fitted along the top edge of a base cabinet or between two drawer fronts, so the door or drawer opens by hooking your fingers into the channel instead of pulling a handle. Mirano's horizontal gola system pairs a J-profile at the top of the cabinet with a C-profile between the drawer fronts, which gives a continuous handleless line across a whole run of base units. Mirano also supplies the 2AL, 3AL, 4AL wall gola and 5AL gola profiles, all in ten finishes.
The range
Mirano 2AL, 3AL, 4AL and 5AL Gola Profiles
Four aluminium gola profiles, in ten finishes. Hover a finish swatch under any image to preview the profile in that colour. The C and J horizontal system is explained further down this page.
| Profile | Shape (as shown) | Typical position | Details |
|---|---|---|---|
| 2AL Gola Profile | Gola channel with stepped front lip | Base, drawer stacks, tall units | View |
| 3AL Gola Profile | Deeper curved channel | Base, drawer stacks, tall units | View |
| 4AL Wall Gola Profile | Rounded top bead, ribbed tab | Wall cabinets | View |
| 5AL Gola Profile | Stepped lip on a hollow box section | Base, drawer stacks, tall units | View |
01Gola channel

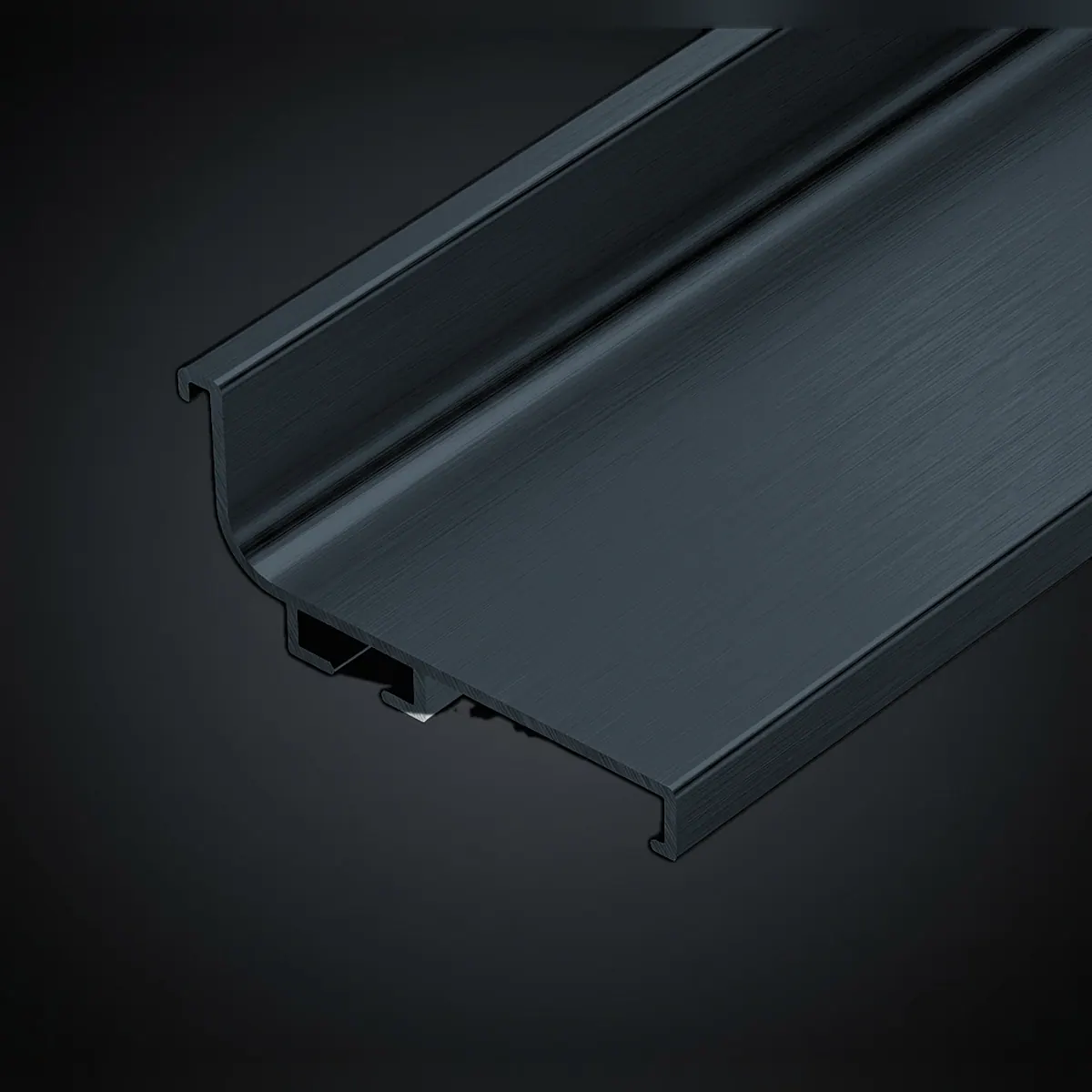

2AL Gola Profile: Slim Aluminium Gola Channel for Handleless Kitchens
The 2AL is a slim gola channel with a stepped front lip and a flat, brushed face. The lip gives the fingers a place to catch, and small tabs on the back locate the profile in the cabinet edge.
Key features
- Slim channel profile with a stepped front lip
- Flat brushed face that reads as a clean line along the run
- Rear tabs for locating the profile in the cabinet edge
- For handleless kitchen cabinets: no separate handle on the front
- Available in all ten Mirano finishes
Section drawing and sizes: ask for the datasheet.
Silver: Neutral and cool. The safe pairing with white, grey and pale-wood kitchens, stainless appliances and quartz or granite tops.
Technical specifications
| Specification | Detail |
|---|---|
| Type | Gola channel, aluminium |
| Section drawing and sizes | Not published; confirm when quoting |
| Application | Handleless kitchen cabinets; confirm position (top, between drawers) for your layout |
| Finishes | 10 finishes |
| Datasheet | Datasheet and drawings on request; confirm the model and sizes when quoting |
Best suited for: Base units and drawer stacks in handleless kitchens where a slim, understated channel is wanted.
Enquire About 2AL Gola 02Gola channel

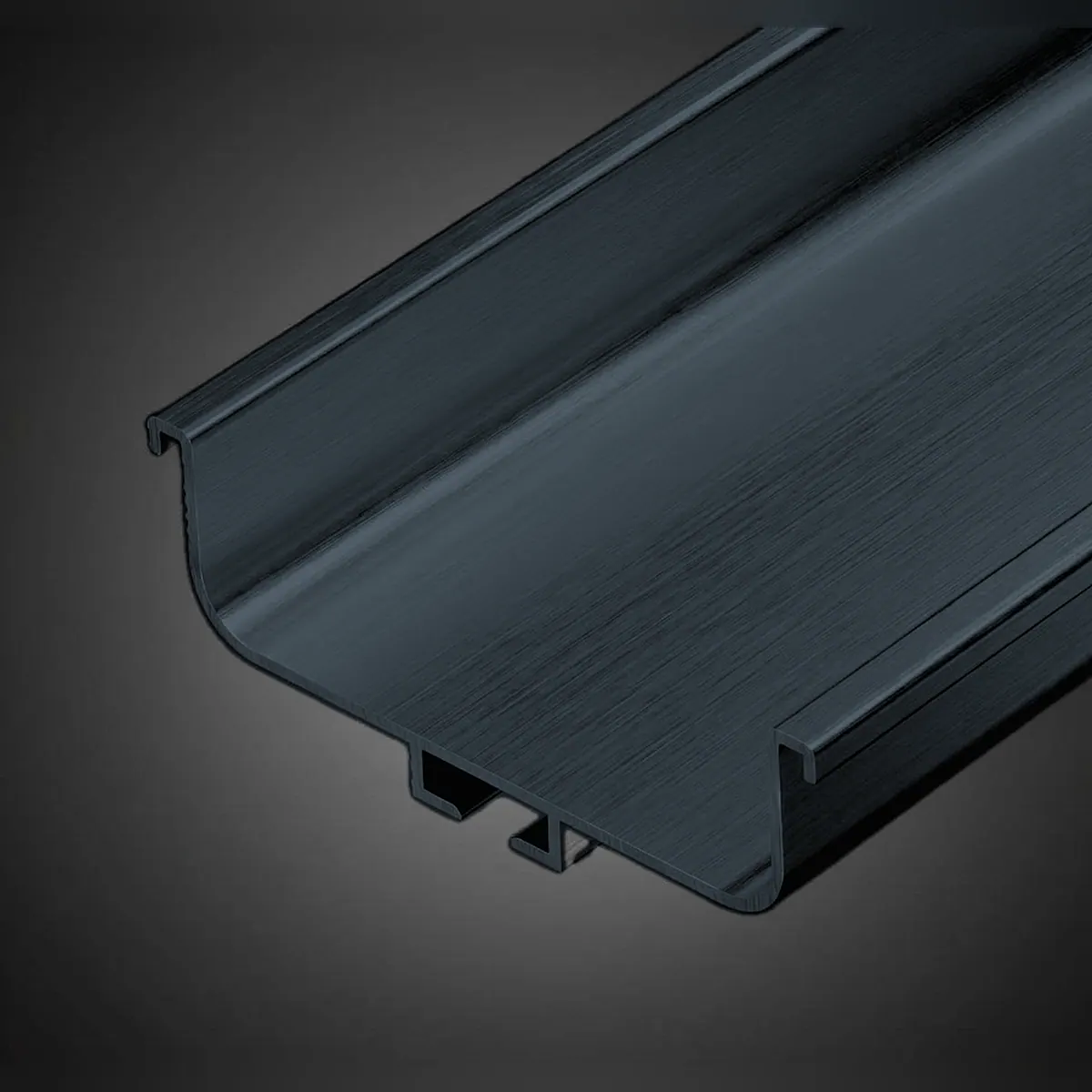

3AL Gola Profile: Deeper Curved Channel for an Easy Grip
The 3AL has a deeper, curved channel with a clean inside radius. The extra depth gives the hand an easier grip, which helps on wide drawer fronts and tall doors.
Key features
- Deeper curved finger channel with a smooth inside radius
- Flat brushed outer face with fine edge lines
- Rear tabs for locating the profile in the cabinet edge
- For handleless kitchen cabinets: no separate handle on the front
- Available in all ten Mirano finishes
Section drawing and sizes: ask for the datasheet.
Silver: Neutral and cool. The safe pairing with white, grey and pale-wood kitchens, stainless appliances and quartz or granite tops.
Technical specifications
| Specification | Detail |
|---|---|
| Type | Gola channel, aluminium |
| Section drawing and sizes | Not published; confirm when quoting |
| Application | Handleless kitchen cabinets; confirm position for your layout |
| Finishes | 10 finishes |
| Datasheet | Datasheet and drawings on request; confirm the model and sizes when quoting |
Best suited for: Wide drawers and tall doors where a deeper grip makes daily use easier.
Enquire About 3AL Gola 03Wall gola
4AL Wall Gola Profile: Handleless Opening for Wall Cabinets
The 4AL wall gola has a rounded top bead with an inserted strip and a ribbed tab on the back. It is the profile in the range named for wall cabinets, where the door is opened from underneath.
Key features
- Rounded top bead with an inserted strip
- Ribbed rear tab for a firm fix
- Named for wall cabinets: handleless opening on upper units
- Available in all ten Mirano finishes
Section drawing and sizes: ask for the datasheet.
Related components for wall gola runs, such as caps and corners, are on the Wall Gola System section of the plinth and gola page.
Silver: Neutral and cool. The safe pairing with white, grey and pale-wood kitchens, stainless appliances and quartz or granite tops.
Technical specifications
| Specification | Detail |
|---|---|
| Type | Wall gola profile, aluminium |
| Section drawing and sizes | Not published; confirm when quoting |
| Application | Wall (upper) cabinets, as named; confirm for your layout |
| Finishes | 10 finishes |
| Datasheet | Datasheet and drawings on request; confirm the model and sizes when quoting |
Best suited for: Wall units in handleless kitchens, to carry the same clean line from base to upper cabinets.
Enquire About 4AL Wall Gola 04Gola channel

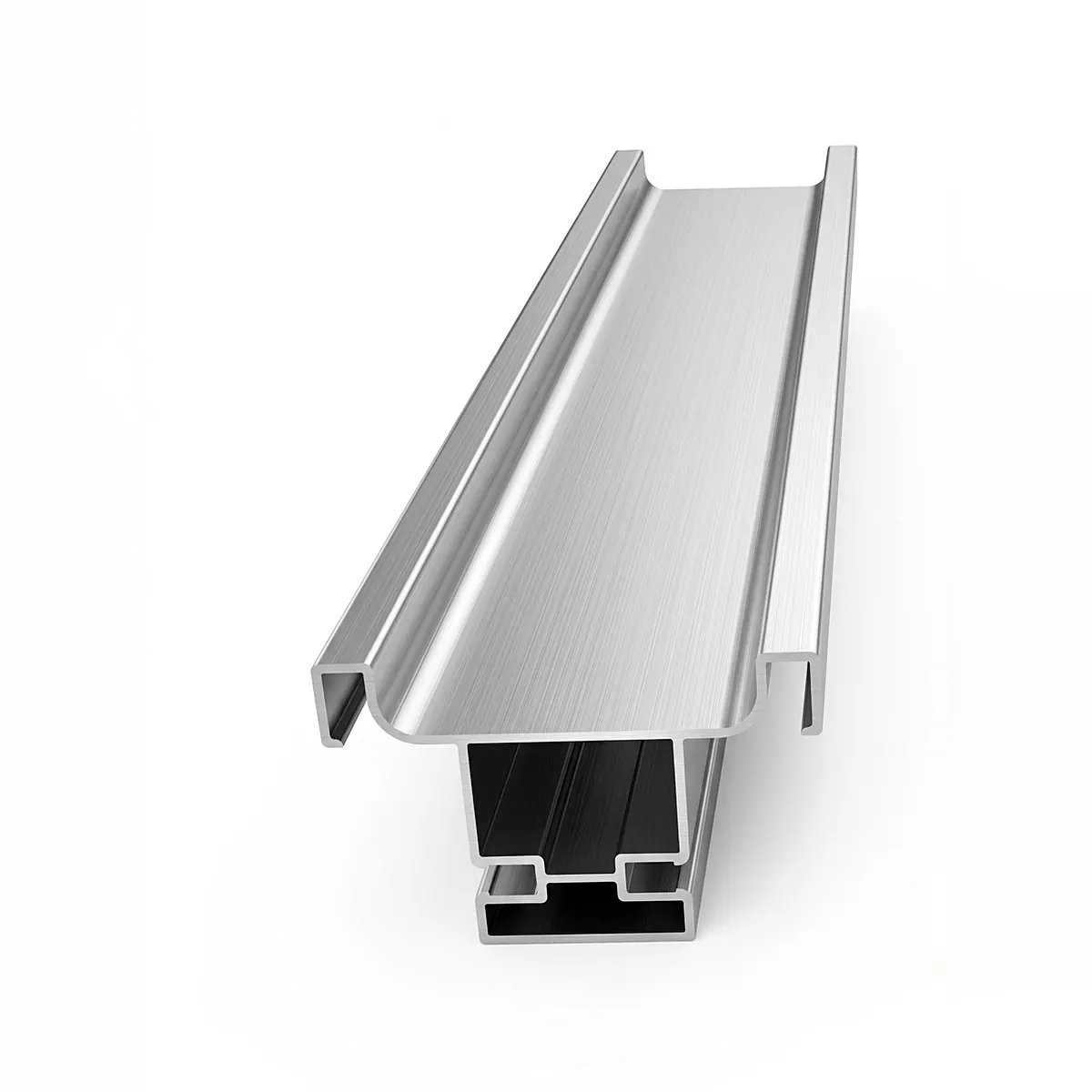

5AL Gola Profile: Gola Channel on a Hollow Box Section
The 5AL combines a gola channel with a stepped lip and a hollow rectangular box section below it. The box section gives the profile body and rigidity along its length.
Key features
- Stepped lip above a hollow rectangular box section
- Hollow section gives body and rigidity
- For handleless kitchen cabinets: no separate handle on the front
- Available in all ten Mirano finishes
Section drawing and sizes: ask for the datasheet.
Silver: Neutral and cool. The safe pairing with white, grey and pale-wood kitchens, stainless appliances and quartz or granite tops.
Technical specifications
| Specification | Detail |
|---|---|
| Type | Gola channel on a box section, aluminium |
| Section drawing and sizes | Not published; confirm when quoting |
| Application | Handleless kitchen cabinets; confirm position for your layout |
| Finishes | 10 finishes |
| Datasheet | Datasheet and drawings on request; confirm the model and sizes when quoting |
Best suited for: Base units and tall units where a sturdier, boxed section is preferred.
Enquire About 5AL Gola Finish Studio
Ten Finishes on Every Gola Profile
Gola channels come in the same ten finishes as Mirano’s handles and shutter frames, so a kitchen can be matched end to end. Tap or hover a finish and the profiles above change with it.
Colour previews are digital renders for guidance. Ask for physical finish samples before you specify.
The Basics
What Is a Horizontal Gola Profile?
The word gola describes a recessed finger channel. In a horizontal system the channel runs along the width of the cabinet, so a drawer or door can be opened from anywhere along its length, not from one handle position.
Two profile shapes do the work. The J-profile sits at the top of the cabinet and opens the first drawer or door. The C-profile sits between two drawer fronts and serves the drawer above and the drawer below at once.
It is the system most associated with the handleless kitchen. Because the profile is fixed to the carcass rather than to each shutter, it also keeps the front clean: no screw holes, no protruding handles and an even shadow line from one end of the run to the other.
Compare
C Profile vs J Profile
Both belong to the same horizontal system. The difference is where they sit and what they open.
| J profile (top edge) | C profile (between drawers) | |
|---|---|---|
| Position | Top edge of the base cabinet | Between two drawer fronts, or a drawer and a door |
| What it opens | The top drawer or door | The drawer above and the drawer below, through one channel |
| Typical unit | Single-drawer or door base units, kitchen islands | Base units with two or more stacked drawers |
| Used with | A C-profile in multi-drawer stacks | A J-profile at the top of the same unit |
| Other names | Often listed as L-gola in Indian catalogues | C-gola |
Naming differs between catalogues. Check the cross-section drawing, not just the letter, before you place an order.
Layouts
Which Horizontal Gola Layout Fits Your Base Unit?
Match the profile to the drawer layout. The combinations below cover most base-unit designs.
02
Two-drawer base unit
A J-profile at the top and a C-profile between the two drawer fronts. This is the standard setup Mirano describes for its horizontal system.
03
Three or more drawers
A J-profile at the top and a C-profile between each pair of drawer fronts, so every drawer opens through its own recess.
04
Corners and tall units
Run the horizontal line around corners with the 90° internal and external corners, and switch to a vertical gola profile on tall units.
Specification
How to Specify a Horizontal Gola Profile
Dimensions differ by manufacturer, so these are the points to settle with the specification team before cutting boards.
| Factor | Why it matters | Confirm in the datasheet |
|---|---|---|
| Board thickness | The profile has to seat properly in the carcass and shutter board you are using. | Compatible board thickness range |
| Profile height and channel depth | Decides finger room, the gap between drawer fronts and how much internal drawer height is lost. | Height, depth and drawing for the C and J sections |
| Length and cutting | Many horizontal gola profiles are supplied in 3 m lengths. Plan joins at cabinet dividers, not in the middle of a drawer front. | Standard extrusion length and cut-to-size options |
| Finish | The profile can blend with the shutter or stand out as a deliberate line. | Available finishes and batch consistency |
| Caps and corners | End caps and 90° corner pieces close the profile ends and carry the line around corners. | Matching caps and corners for your finish |
| Quantity and lead time | Project and OEM volumes are planned against production and dispatch times. | Lead time for your order size |
Mirano does not publish catalogue dimensions on this page. Request the datasheet and drawings through the quote form for the exact figures.
Planning
Design Notes Before You Build
A gola kitchen is easier to get right when the profile is decided at the carcass stage.
01
Decide the profile at carcass design
Horizontal gola profiles are fixed into the carcass, so changing from a handle to a gola system after the boards are cut means rework.
02
Check drawer clearance
The channel takes some internal height. Confirm the profile height against your drawer system and runner before finalising drawer front sizes.
03
Keep the shutter gap consistent
A handleless front shows every inconsistency. Hold the same gap above and below each C-profile across the run.
04
Match finish to the whole line
Pick the gola finish together with the plinth and corner pieces so the kitchen reads as one system.
Fitting
Fitting a Horizontal Gola Profile: Overview
A general sequence for OEM and site teams. The exact fixing method depends on the section, so follow the fitting guidance supplied with the datasheet.
01
1. Confirm the layout
Mark which units take a J-profile and which take a C-profile, and check the profile height against drawer box height before cutting any boards.
02
2. Cut to width
Cut each length to the cabinet width with a fine-tooth blade and remove burrs so the exposed edge is clean. Plan joins at cabinet dividers.
03
3. Fix to the carcass
Fix the profile at the planned height with the fixings the section calls for. Hold the same height along the whole run.
04
4. Set the gap
Position the shutters and drawer fronts around the profile with a consistent gap above and below the C-profile.
05
5. Finish and test
Fit end caps and corners, then open every drawer and door to check finger clearance and alignment.
Avoid
Common Mistakes With Gola Profiles
These are the issues that most often show up on site.
01
Treating the letter as the spec
C, J and L naming differs by catalogue. Compare the cross-section drawing, not just the label.
02
Placing a join across a drawer front
A seam in the middle of a front reads as a flaw on a continuous line. Put joins at cabinet dividers.
03
Skipping a sample unit
Build and test one base unit before cutting the whole job, so height and gap problems show up early.
04
Ordering in separate batches
Tone can vary between production runs. Order the full run, including caps and corners, together.
System
Components That Complete a Horizontal Gola Run
A horizontal profile works with these parts of Mirano's range. Each is covered on the main Plinth & Gola page.
01
Caps & Corners
Finishing pieces that close profile ends and turn corners so the line looks factory-finished at every junction. See Caps & Corners.
02
90° Aluminium Corners
Internal and external corner pieces for L-shaped and U-shaped kitchens. See the 90° corners.
03
Vertical Gola Profile
The matching profile for tall units and cabinet columns. See vertical gola.
04
Plinth System
The toe-kick that finishes the base and matches the gola line. See the plinth system.
FAQs
Frequently Asked Questions
A horizontal gola profile is an aluminium channel fitted along the top edge of a base cabinet or between two drawer fronts. You open the door or drawer by hooking your fingers into the channel, so no separate handle is needed. It comes in two shapes: the J-profile for the top edge and the C-profile for the gap between drawers.
The J-profile sits at the top edge of a base cabinet and opens the upper drawer or door. The C-profile sits between two drawer fronts and lets both the drawer above and the drawer below open through one shared channel. A typical two-drawer base unit uses a J at the top and a C in the middle.
Naming varies by catalogue. Several Indian catalogues list the top-edge profile as an L-gola, while European catalogues call the same job a J-profile. Compare the cross-section drawing rather than the letter before you order.
A C gola profile goes between two stacked drawer fronts, or between a drawer and a door above it. One channel serves both fronts, which is why it is used in base units with two or more drawers.
Height, channel depth and board thickness differ by manufacturer and by C or J type, and they must match your carcass and shutter design. Many horizontal gola profiles in the Indian market are supplied in 3 m lengths. For the exact dimensions of the Mirano range, request the datasheet through the quote form.
Yes. Mirano's range includes a dedicated Wall Gola System for upper cabinets, so wall units can match the base units below.
A gola profile is fixed to the carcass and creates a recessed shadow-line grip, so it needs planning at the design stage. A G profile handle is fixed to the top edge of the shutter or drawer front and moves with it. Both give a handleless look; the gola profile is the more minimal of the two.
Mirano's plinth and gola range is available in anodised and coated aluminium finishes, including silver, matte black, champagne PVD and custom coated options. Confirm availability for your batch with the specification team.
Gola systems involve different hardware and machining from standard handles, so the cost mix changes rather than simply rising. For OEMs, fabricators and dealers, Mirano's range is supplied for project and bulk specification rather than one-off retail.
Price depends on the finish, the length and the quantity, so Mirano quotes gola profiles for the project rather than listing a retail price. Send the cabinet run length, finish and number of units through the quote form to get a figure.
Some gola profiles are designed to carry a strip light, and others are not. Check whether the section you are specifying has an LED channel before you plan lighting. Mirano's separate LED profiles cover under-cabinet and shelf lighting.
They solve the same problem differently. Push-to-open needs a mechanism in every drawer and door and leaves the front untouched. A J-pull is cut into the edge of the shutter. A gola profile is fixed in the carcass and gives a shared channel across a run. Gola costs more planning at design stage but gives the most continuous line.
The profile is cut to the cabinet width, fixed to the carcass at the planned height, and finished with end caps. The C-profile is positioned between the drawer fronts using a consistent gap. The exact fixing method depends on the section, so follow the fitting guidance supplied with the datasheet.
Yes. Mirano supplies modular kitchen OEMs, fabricators, interior designers, architects and dealers across India. Use the quote form for project quantities, samples and lead times.
Explore More
Related Mirano Hardware
Build with Confidence
Specify gola hardware that keeps the line clean.
Request the datasheet, samples and project pricing for Mirano's horizontal gola profile. We respond within one business day.
